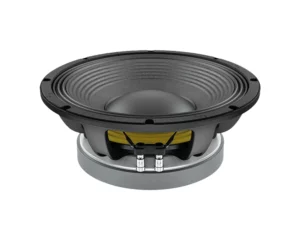

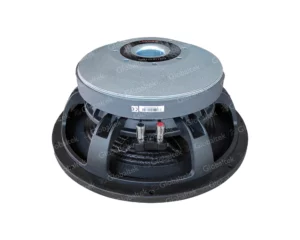

Woofer 12 LAVOCE WAF124.01 2000W

Name: Woofer 12 LAVOCE WAF124.01 2000W - Globaltek
SKU: 00325
Price: 205.00 EUR
Availability: InStock

Il prezzo originale era: 312,32 €.Il prezzo attuale è: 205,00 €. IVA Inclusa

Disponibile in pronta consegna

Spedizione a costo fisso da €4.90 con Corriere Espresso
Tempi di consegna da 1 a 3 giorni lavorativi

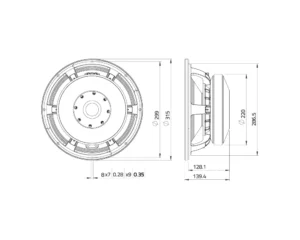

Nominal diameter	mm (in.)	300 (12)
Nominal impedance	Ω	8
Minimum impedance	Ω	6,4
Program power (1)	W	2000
AES Power rating (2)	W	1000
Sensitivity (3)	dB	96,5

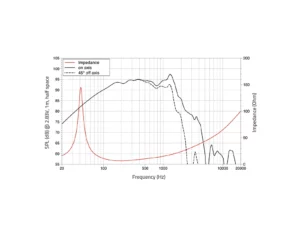

Frequency range	Hz	40 ÷ 1000
Voice coil diameter	mm (in.)	100 (4)
Chassis material	Aluminium
Magnet material	Ferrite
Magnet dimensions OD x ID x h	mm (in.)	220 x 120 x 25 (8.66 x 4.72 x 0.98)
Coil material	Copper
Former material	Glass Fiber
Cone material	Water Resistant Treated Paper + Water Proof Both Sides Treatment
Surround material	Polycotton
Xmax (4)	mm (in.)	9 (0.35)
Xmech (5)	mm (in.)	16 (0.63)
Gap height	mm (in.)	12 (0.47)
Voice coil winding height	mm (in.)	24 (0.94)
Driver displacement volume	l (ft3)	3,2 (0.11)
Recommended enclosure	l (ft3)	59,4 (2.10)
Recommended tuning	Hz	55

SMALL SIGNAL PARAMETERS

DC resistance	Re	Ohm	5,1
Resonance frequency	Fs	Hz	42
Moving mass	Mms	g (oz)	107,5 (3.79)
Compliance	Cms	mm/N	0,129
Force factor	BxL	N/A	25,62
Mechanical Q-factor	Qms		5,72
Electrical Q-factor	Qes		0,22
Total Q-factor	Qts		0,22
Equivalent air volume	Vas	l (ft3)	53,4 (1.88)
Voice coil Inductance	Le	mH	1,58
Diaphragm area	Sd	cm2 (in.2)	540 (83.7)
Reference efficiency	Eta 0	%	1,78
Efficiency bandwidth product	EBP	Hz	191
